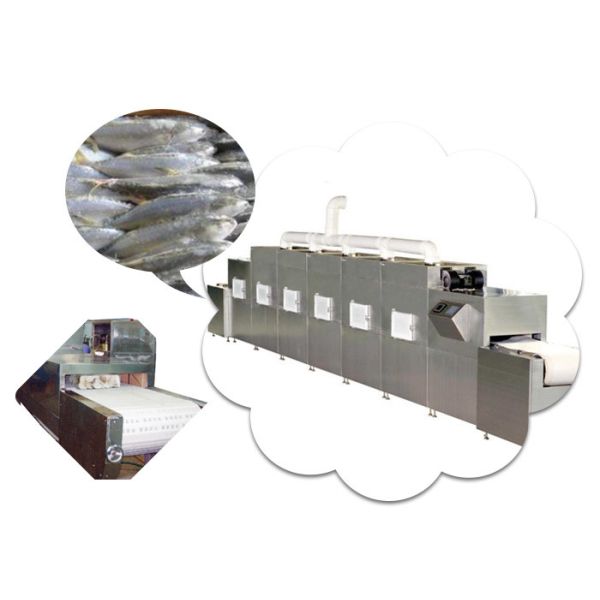

Chinese supplier Good Quality Popular Conveyor Belt type Frozen Meat Microwave Thawing Machine
Equipment introduction:
The equipment uses waveguide feeding microwave, because the material thickness, so the device can only use the microwave frequency of 915HMZ single tube 20KW model for the CK-611 continuous wave magnetron heating, fixed frequency, all-metal ceramic structure, Hot pure tungsten cathode high-power microwave tube, direct excitation rectangular waveguide, magnetron and wave-guide for the water cooling.
Technology Parameters:
| Machine Name |
Microwave Thawing Machine |
| Rated Input power supply |
Three Phase,Five lines 380V±10% 50Hz±1% |
| Model |
HD-40MD |
| Microwave Output Power |
≥40kW Power can be adjusted |
| Microwave Frequency |
915±25MHZ |
| Dimensions |
8500mm(L)×1200mm(w)×2400mm(H) |
| Height of Feeding |
280mm |
| Width of Conveyer Belt |
600mm |
| Conveyor Speed |
0.5～3.5m/min ( speed can be adjusted) |
| Operating Environment |
Relative humidity ≤80% |
| Operating Temperature |
5～40℃ |
| Water supply |
Clean water, PH 6.5-8.5 water flow is 10L/min |
| Relative humidity |
≤80% |
| Surrounding |
Without corrosive gas, conductive dust and gas explosion |
| Wooden Cases |
Export standard fumigation wooden cases |
The characteristics of microwave drying machine:
1) Since water is not needed during thawing, the working environment can be kept dry and clean, the working environment is excellent, and HACCP can be easily realized.
2) Reduce drip loss. Since the internal heating and thawing method of the frozen product is adopted, the temperature inside and outside the defrosted product is uniform, so that the dripping phenomenon is not easy to occur, and the quality of the product can be maintained to the utmost extent.
3),Since water is not needed during thawing, the working environment can be kept dry and clean, the working environment is excellent, and HACCP can be easily realized.
Advantages of microwave drying machine:
|
saving manpower and reducing the occupation of working space.
|
|
continuous operation from cryopreservation → thawing → post-treatment process can be realized.
|
| traditional water immersion thaw pool, greatly improved the quality of frozen |
|
thawing safety and hygiene, because no water is used, so there will be no bacterial pollution, and also save water costs.
|
| ingredients can keep unchanged on the palate, flavor, eat it safely |
Applicable for
Applicable for frozen products such as fish and meat before processing thawing.
Service
1. Delivery Term: FOB Qingdao, by vessel
2. Delivery Time: 45 working days
3. Payment Terms: T/T (30% to pay by T/T as down payment , the rest 70% is paid by T/T before delivery.)
4. Installation / Operation / Service / Manual: In English
5. Installation team: Commissioning service provided for 4-17 days. The client bears the technician’s round-trip flight tickets, accommodations and daily salary of USD 80.
6. Warranty: One year from the date of completion of the commissioning
7. Pre-shipment Inspection: Supplier should trial run whole line at supplier’s factory before shipment.
